511 Ceiling Clip | 12 Ft. Bar
ATTENTION: This item will be rejected for delivery when you proceed at check out, due to length. If you are interested in purchasing the 511 Ceiling Clip Bars, please contact us via email with your order and shipping information. If you are purchasing less than 30 bars we can cut them to 6ft and ship UPS anything more will require an LTL Freightliner. LBallew@starhanger.com

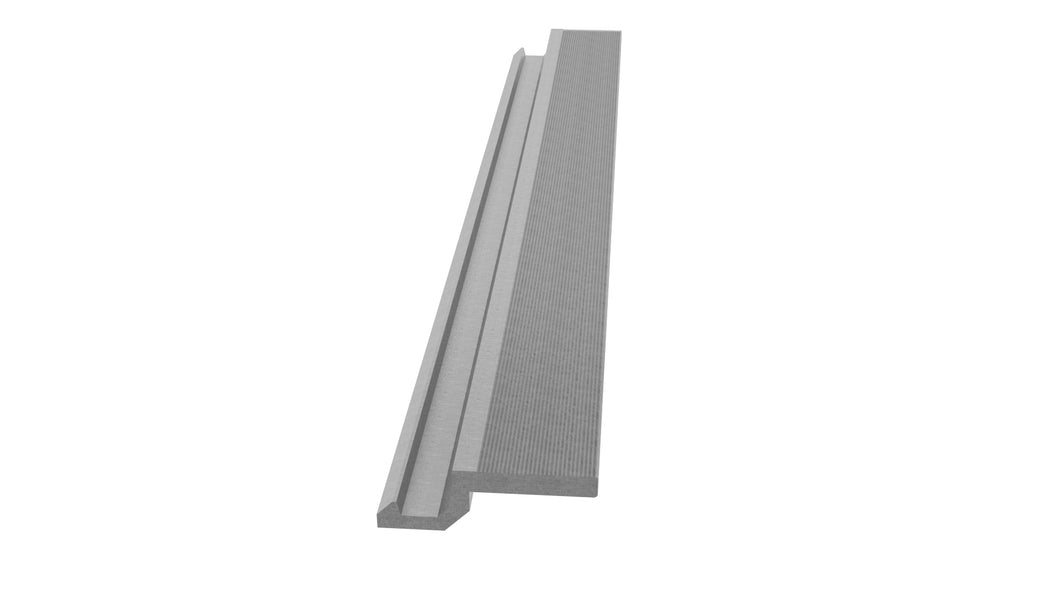

The 511 Ceiling Clip 12ft Bar was designed to hang architectural overhead panels to furring. This bar has a J-Hook shape with a 1/8” deep ledge that allows an adjacent same profile clip to latch on securely.
Read more ↓
- Product Description
- Introduction Animation
- Installation Guides
- Demonstration Videos
- Drawings & Models
- Product Specifications
Applications
The 511 Ceiling Clip 12ft Bar was designed to hang architectural overhead panels to furring. This bar has a J-Hook shape with a 1/8” deep ledge that allows an adjacent same profile clip to latch on securely. The 511 Ceiling Clip 12ft Bar is designed to mount specifically to the ceiling furring, and the 512 Ceiling Clip Single is used as the adjacent 2” clip that attaches to the panel as shown on the above diagram. The 511 Ceiling Clip 12ft Bar can lock into itself if a more custom approach is needed. This bar can be spread out up to 24” across studs, uneven surfaces, and existing drywall. The install motion is a lift-up, slide together, and drop-in from all corners. Reverse same motion for removal. Only 3/8” is needed for reveal area to achieve this install. (Silicon is suggested to prevent movement on the track) The clips are rated to 25lbs each.
Quick Specs: 511 Ceiling Clip 12ft Bar
Benefits: Allows ceiling panels to be mounted to both new construction, remodeling, accent panels, and in occupied spaces. Removable for future access by HVAC or Electrical Trades. Hidden for optimal aesthetic.
Stock Size: L 12’, W 1-5/8”, H ½” (Custom length available upon request.)
Gap Distance from Ceiling to Panel: ¾”
Install Motion: Coordinated level lift among all 4 corners, slide together, and drop in from all corners. Reverse motion for removing.
Required Reveal: 3/8”
Profile Description: J Hook Profile with a 1/8” ledge
Material: Recycled 6061 Structural Grade Aluminum Alloy
Product Includes: 1x 511 Ceiling Clip 12ft Bar
Compatible Products: 512 Ceiling Clip 2” Single (Recommended Spacing for adjacent 512 Ceiling Clip is roughly every 24”)
Strength Testing:
Tensile Failure (Vertical weight holding) = 150 lbs. – Working Load (weight holding) = 25 lbs.
Failure (Horizontal pull side pull) = 100 lbs. – Working Load = 15 lbs.
