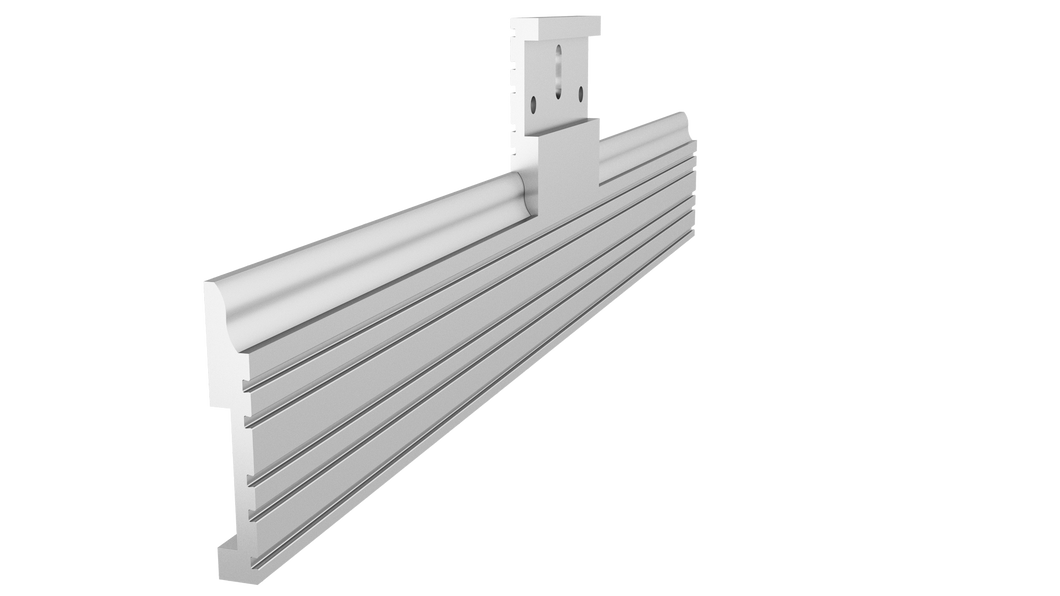

The 430 S Clip 12ft Bar and 420 S Clips are part of the 400 Series and are designed to hang architectural wall panels with or without furring. Unlike traditional panel bars/clips the S Clip has an improved profile (ogee or “S” shaped) designed for improved locking and a snap like feel when seated in place. This gives the installer assurance the connection has been made. The back of the profile is ribbed, to provide grip during installation, assisting in precise placement. This panel clip is a high-performance upgrade to traditional clips, with a heavier build and better bend resistant profile. This hardware is completely hidden for optimal aesthetic and 100% removable. Works with all 400 Series Products.
Read more ↓
- Product Description
- Introduction Animation
- Installation Guides
- Demonstration Videos
- Drawings & Models
- Product Specifications
DESCRIPTION
The 430 S Clip 12ft Bar and 420 S Clips are part of the 400 Series and are designed to hang architectural wall panels with or without furring. Unlike traditional panel bars/clips the S Clip has an improved profile (ogee or “S” shaped) designed for improved locking and a snap like feel when seated in place. This gives the installer assurance the connection has been made. The back of the profile is ribbed, to provide grip during installation, assisting in precise placement. This panel clip is a high-performance upgrade to traditional clips, with a heavier build and better bend resistant profile. This hardware is completely hidden for optimal aesthetic and 100% removable. Works with all 400 Series Products.
INSTALLATION
The S Clip’s seat into each other when paired. The 430 S Clip Bar and 420 S Clip have the same profile and can be used together in multiple variations. The 430 S Clip Bar can easily be cut to any custom length and used with itself, or in combination with the 420 S Clips. The 420 S Clip as a pair works as a single location connection point.
SPECIFICATIONS
BENEFITS: High performance wall panel clip, profile designed to snap when seated. Locator marking tools to reduce measuring (410 NZ Alignment Clip), Removable for future access by HVAC or Electrical Trades. Hidden for optimal aesthetic.
SUGGESTED MATERIALS: Wood Panels Min. 5/8”, Acoustic Panels, Frames, Trim, Plywood, Particle Board/MDF.
STOCK SIZE: L 12’ x H 1-3/4” x W 1/4”
FASTENER TYPE: Surface Mounted, Drop in lock
DISTANCE FROM WALL TO PANEL: ¼” THICK CLIP
SPACING: Approx. 18”- 24” o.c.
HOLE SIZE: Fitted for #8 Screws, 1-1/2” Square pattern
MAXIMUM PANEL SIZE: 4’x 12’ average
LOAD CAPACITY: Max 25lbs per connection point
PRICING: Wholesale
MATERIAL: Recycled 6061 Structural Grade Aluminum
TESTED STRENGTH RATING: With 3/4", 45 lb. Particle Board
Tensile Failure (Horizontal pull) = 150 lbs. | Working Strength, Pull from Furring = 25 lbs.
Shear Failure (Vertical holding) =150 lbs. | Working Strength, Weight holding = 25 lbs.
SAFETY NOTE: NOT RECOMMENDED FOR OVERHEAD USE WITHOUT A SAFETY
LANYARD. VERTICAL APPLICATIONS ONLY.
