475 Z Bar | 12ft Bar (Matches the 375 Z Clip)
DESCRIPTION

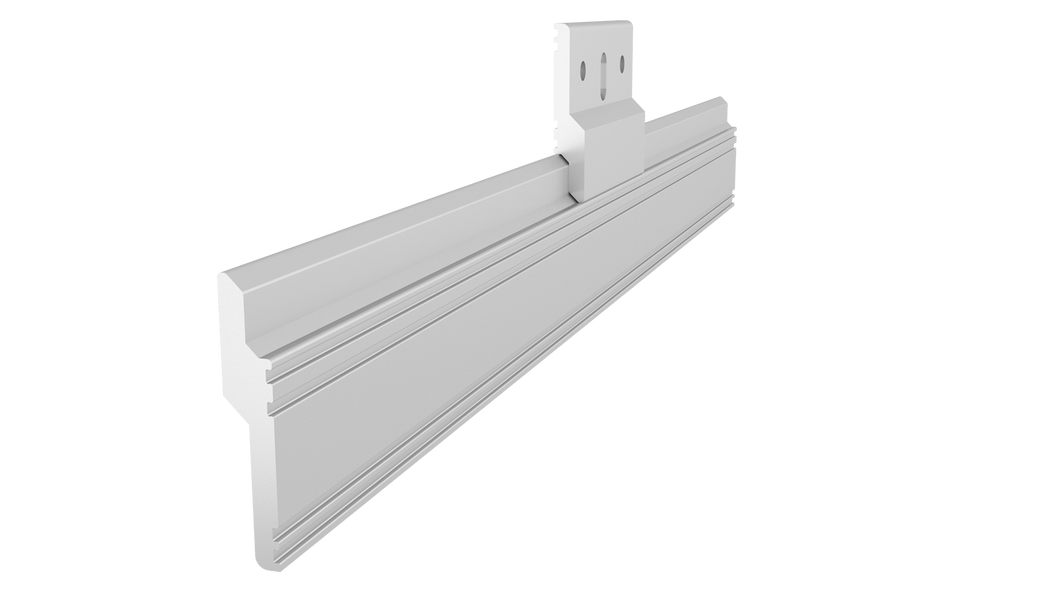

The 475 Z Clip 12ft Bar and 470 Z Clips are basically the same as the standard 375 Z Clip profile. They designed to hang architectural wall panels with or without furring. This profile does the same job as the Star Hanger's 430 S Bar, but it is lighter and therefore less expensive. The bar works with the 470 Z Clips. The slots on the back are concaved to adhere better using panel adhesive. This hardware is completely hidden for optimal aesthetic and 100% removable.
Read more ↓
- Product Description
- Introduction Animation
- Installation Guides
- Demonstration Videos
- Drawings & Models
- Product Specifications
INSTALLATION
The 470 Z Clips seat into each other when paired and measure 2" x 3" for easy layout. The 475 Z Clip Bar and 470 Z Clip have the same profile and can be used together in multiple variations. The 475 S Bar can be cut to any custom length and used with itself, or in combination with the 470 Z Clip. The 470 Z Clip can be used as a pair for a single location connection. The profile the the 400 NZ Clip for staples is different, however they do interlock and holds well.
SPECIFICATIONS
BENEFITS: Standard wall panel clip, the 475 does work with the 410 NZ Alignment Clips to reduce measuring.
SUGGESTED MATERIALS: Wood Panels Min. 5/8”, Acoustic Panels, Frames, Trim, Plywood, Particle Board/MDF.
STOCK SIZE: L 2" x H 1-11/16” x T 1/4”, (2" x 3" when paired),
FASTENER TYPE: Surface Mounted, 3/8" Drop and Lock
DISTANCE FROM WALL TO PANEL: ¼” Thick
SPACING: Approx. 18”- 24” o.c.
HOLE SIZE: Fitted for #8 Screws, 1-1/2” square pattern
MAXIMUM PANEL SIZE: 4’x 12’ average
LOAD CAPACITY: Max 25lbs per connection point
PRICING: Wholesale
MATERIAL: Recycled 6061 Structural Grade Aluminum
TESTED STRENGTH RATING: With 3/4", 45 lb. Particle Board
Tensile Failure (Horizontal pull) = 150 lbs. | Working Strength, Pull from Furring = 25 lbs.
Shear Failure (Vertical holding) =150 lbs. | Working Strength, Weight holding = 25 lbs.
SAFETY NOTE: NOT RECOMMENDED FOR OVERHEAD USE WITHOUT A SAFETY
LANYARD. VERTICAL APPLICATIONS ONLY.
