Star Hanger Fasteners Applications

×

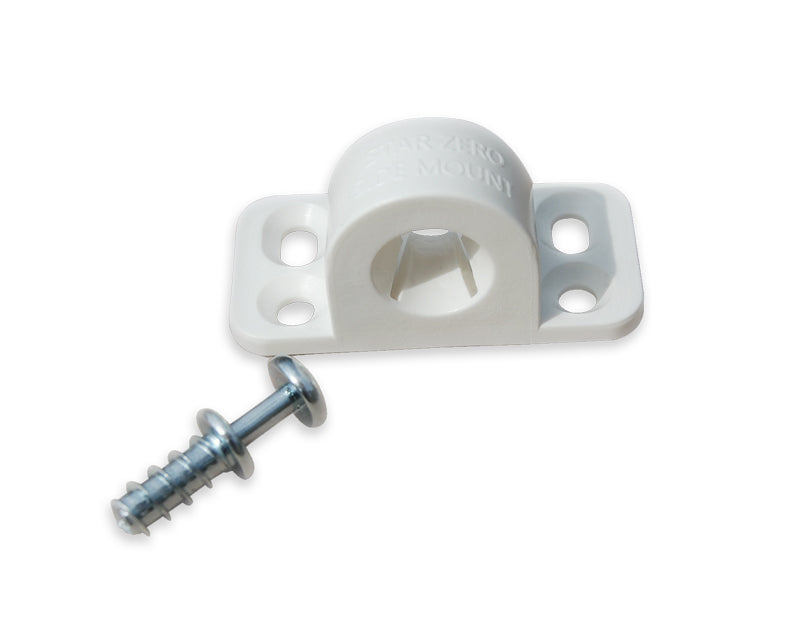

326 Zero Side Mount, 5/16" Gap (25 Lbs. White)

The 326 Zero Side Mount (25 Lbs. White) provides a nice balance between holding the panel firmly in place and remaining removable without requiring the use of tools. This combination makes them very useful for false drawers, end scribes, cabinet soffits and ADA under sink units. The assembly of a reception desk can be significantly streamlined using the 326 Zero Side Mount for tack panels, toe kicks and removable access panels.

Read more

  • Product Description
  • Introduction Animation
  • Installation Guides
  • Demonstration Videos
  • Drawings & Models
  • Product Specifications

Zero_Side_Mount_Diagram

Applications

The 326 Zero Side Mount (25 Lbs. White) provides a nice balance between holding the panel firmly in place and remaining removable without requiring the use of tools. This combination makes them very useful for false drawers, end scribes, cabinet soffits and ADA under sink units. The assembly of a reception desk can be significantly streamlined using the 326 Zero Side Mount for tack panels, toe kicks and removable access panels.

Description

The 325 Zero Side Mount is a hidden panel-mounting clip designed to snap removable panels firmly in place at right angles to an adjacent side panel. With only two screws, the Side Mount installs quickly. Once the included 5/16" Mounting Screws are snapped into place with about 10lbs of pressure, they can be pulled loose with about 25lbs of force. The 325 Zero Side Mounts are made from durable engineered plastic, allowing for repeated panel removal, and outdoor use.

Note: Adding the 330 Zero Alignment Pin enables fast and easy location and insertion of the 5/16 Mounting Screw.

Cost Benefit Estimates

325 Zero Side Mounts can be drilled and installed in under a minute. This is faster than using traditional methods that have a higher cost.

Strength Testing  with 3/4", 45 lb. particle board
Tensile: (Pull Out) = 25 lbs.
Shear (Drop 1/16") = 10 lbs.

334 Euro Screws are Included with the 325 Zero Side Mount
Other screws are In-Progress, please call to check availability.

  • 335 Euro Screws, Cutoff to 5/16" Thread Length
  • 336 Combination Screws, 1-1/2" Thread Length
  • 238 Combination Screws, 9/16" Thread Length
  • 238 Machine Thread, 10 -24, 9/16" Thread Length

More Information is Available Under "Video/Downloads"
