320 Zero | 5/16" Gap

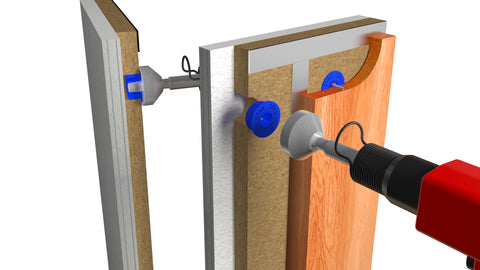

The 320 Zero can be used both to mount to furring and mount to drywall. using field installed or prefabricated furring systems. The 320 Zero is a hidden fastener that allows fast and easy installation of panels directly into place with Zero reveal. Examples include ADA panels, soffit panels, panels with no reveal, fabric panels and wood panels that need to be installed straight into the furring, and for pre-assembled "L" shaped soffits and corners. The 320 Zero holds individual panels, allowing for 1/16" expansion.
Read more ↓
- Product Description
- Introduction Animation
- Installation Guides
- Demonstration Videos
- Drawings & Models
- Product Specifications
Applications
The 320 Zero can be used both to mount to furring and mount to drywall. using field installed or prefabricated furring systems. The 320 Zero is a hidden fastener that allows fast and easy installation of panels directly into place with Zero reveal. Examples include ADA panels, soffit panels, panels with no reveal, fabric panels and wood panels that need to be installed straight into the furring, and for pre-assembled "L" shaped soffits and corners. The 320 Zero holds individual panels, allowing for 1/16" expansion.
Description

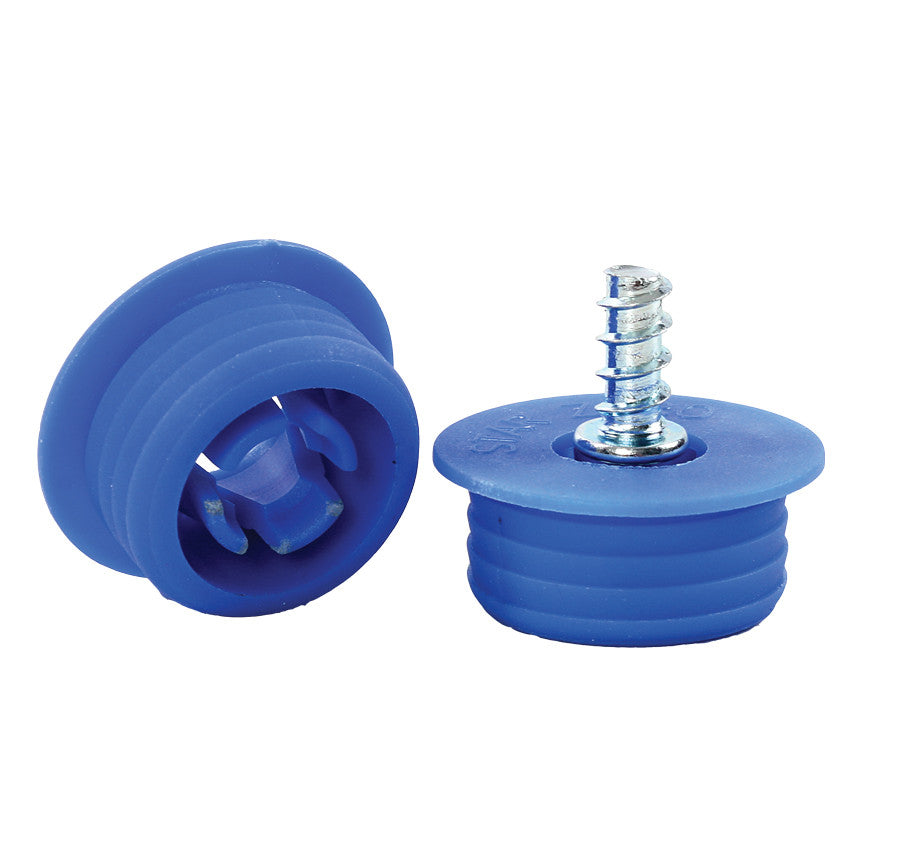

The 320 Zero is a medium-duty, one piece, injection-molded insert fastener designed to install panels 'straight-in' with zero reveals. The engineered plastic body and steel screw withstand repeated removal. The 320 Zero compression fits into a 1.000" drilled hole in any hard substrate. The 320 Zero pushes into a 5/16" mounting screw with about 10 lbs. of force and can be removed with about 25 Lbs. of force, much like a friction catch.
Note: The 320 Zero has a 10 Lb. weight limit. It should be used overhead only in combination with a mechanically locked clip.
Mounting Screw Size: Our mounting screw heads are the same size as a standard # 10 panhead screw; other screw types and materials will also work.
Cost & Benefit Estimates
320 Zero can be drilled and installed in under a minute. This is notably faster than traditional clips with a similar cost.
Strength Testing with 3/4", 45 lb. particle board
Tensile: (Pull Out) = 25 lb.
Shear (Drop 1/16") = 10 lbs.

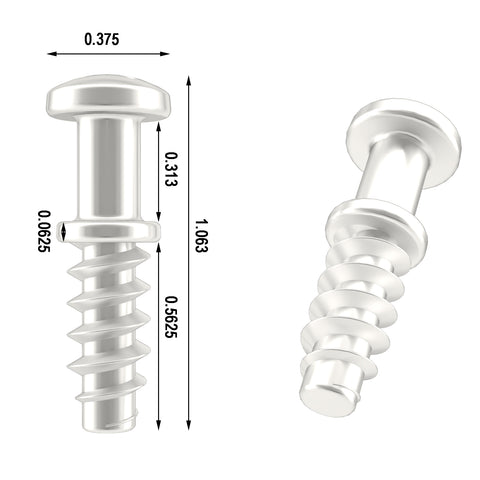

334 Euro Screws are Included with the 320 Zero unless specified
"No Screw"

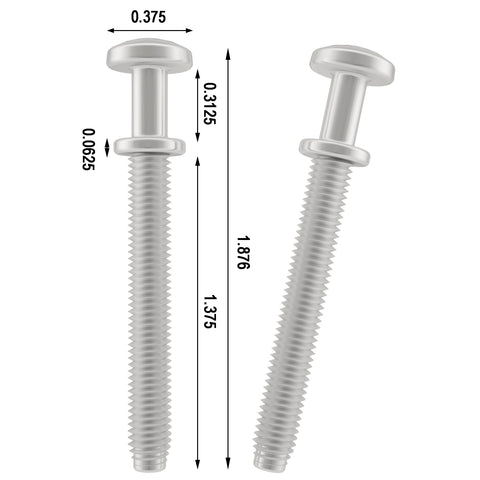

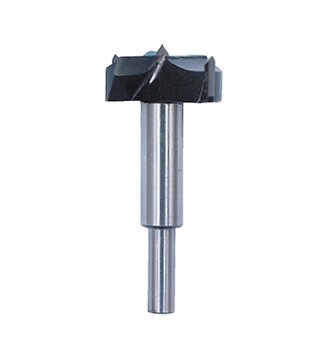

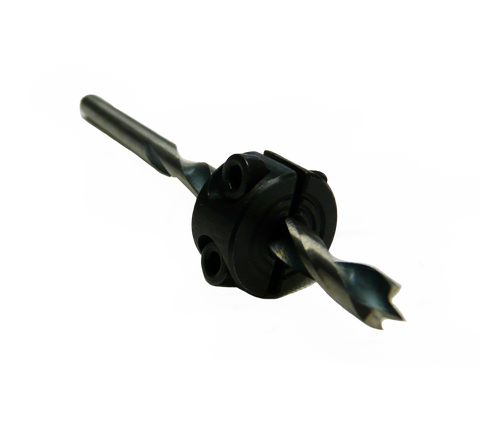

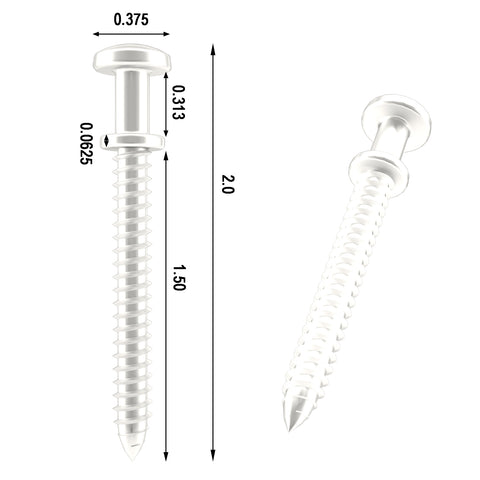

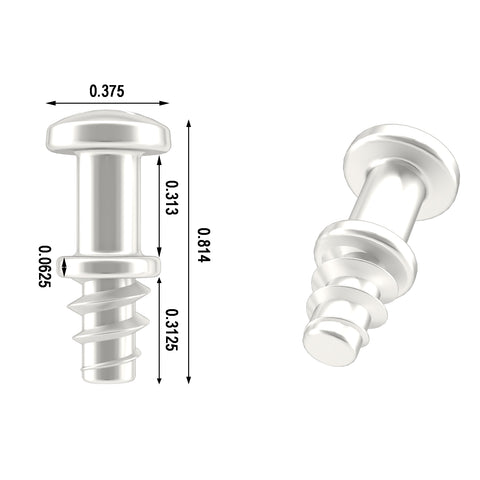

Tools & Additional Screw Options Below
Quick Introduction Animation:
Installation Guides:
Shop Demonstration Videos:
Drawings & Models:
SKU 320, Zero, 2D Drawing (pdf)
SKU 320, Zero, 2D Drawing (dwg)
320 Zero Wall Panels (dwg)
